Flew home yesterday. It was so hot at work that I described it as being on the edge of what humans can stand. Not sure exactly what temp but well above 32 and felt like 99% humidity.

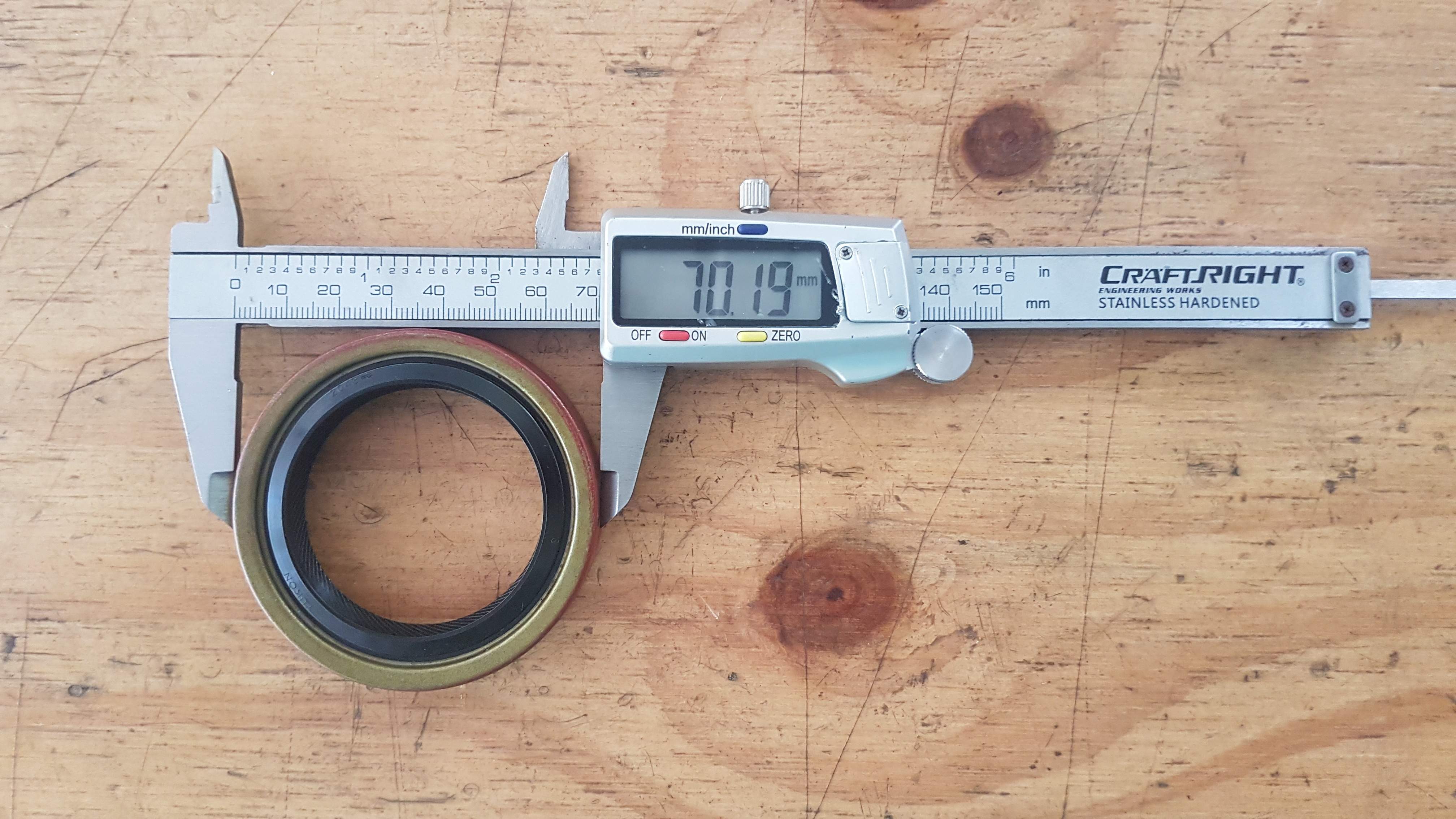

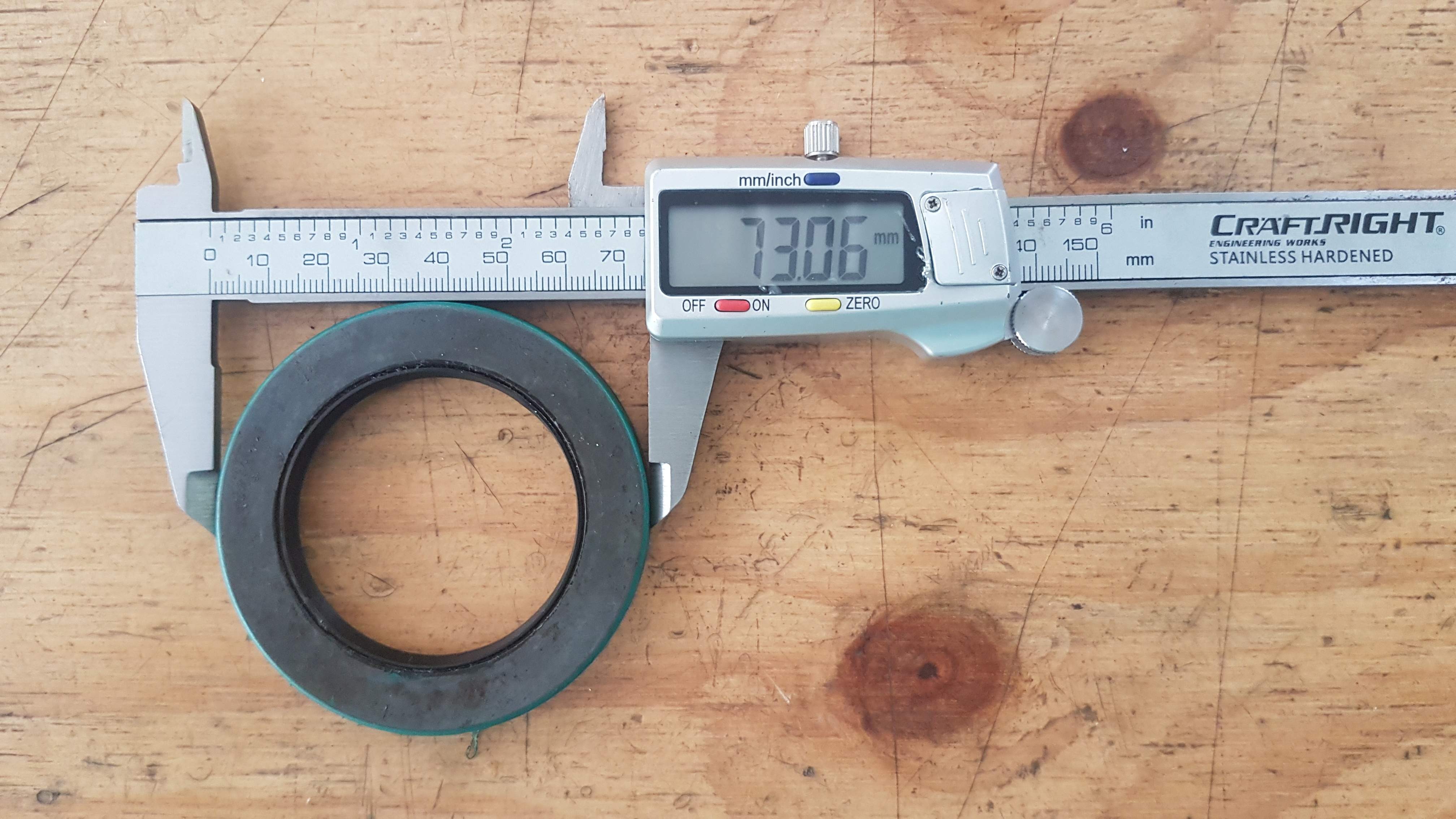

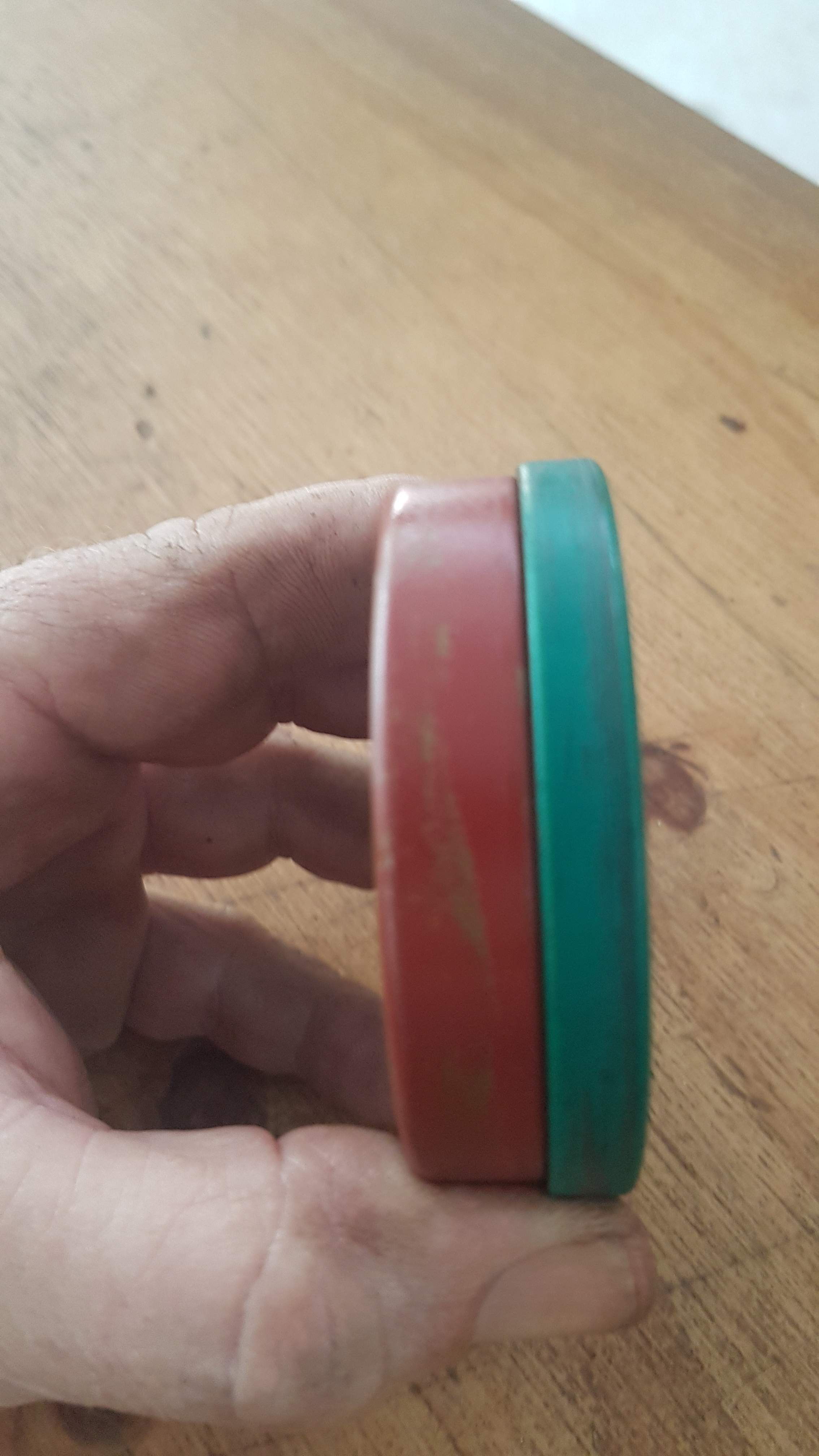

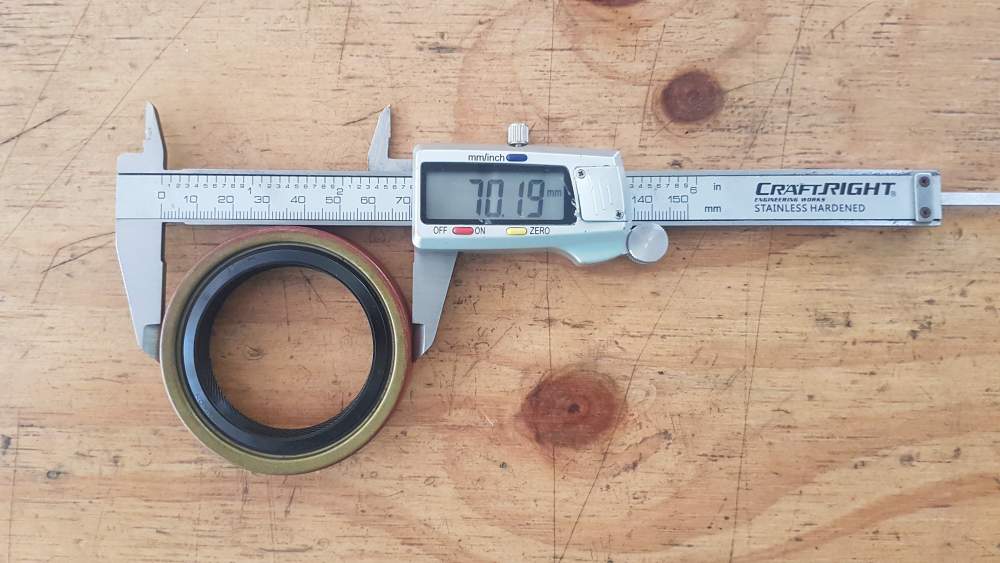

My Rockauto parts arrived but the damn pinion seal is too small. I positioned it in it's housing and it fell straight in. I took measurements between old & new - about 2 to 3mm difference, so replaced old seal and was sure to seal it in place. It might work. 8.2" BOP diff - that's what I have, isn't it? Well it doesn't fit - I'll email them. With the dark cloud of Kiwi's admission of wrongly threaded wheel cylinders hanging over me in addition to the incorrect pinion seal I removed one front wheel cylinder. I couldn't loosen the damn flex hose because the ancient nut (where it joins to steel brake pipe) rounded so I had to unbolt the old cylinder and unscrew (rotate) the entire cylinder against the end of the hose, which worked just fine. Thankfully the hose threaded into the new cylinder so that one's done. I then pulled apart the RHS brake and same deal. Once I loosened some connections a mixture of fluid & rusty water seeped from that cylinder AND the grease seal was shot too. Will complete that one tomorrow. I always meant to replace that wheel cylinder and thank goodness I'm now going to do it. The brakes never leaked and always seemed to work fine but I'm very glad to be replacing those parts.

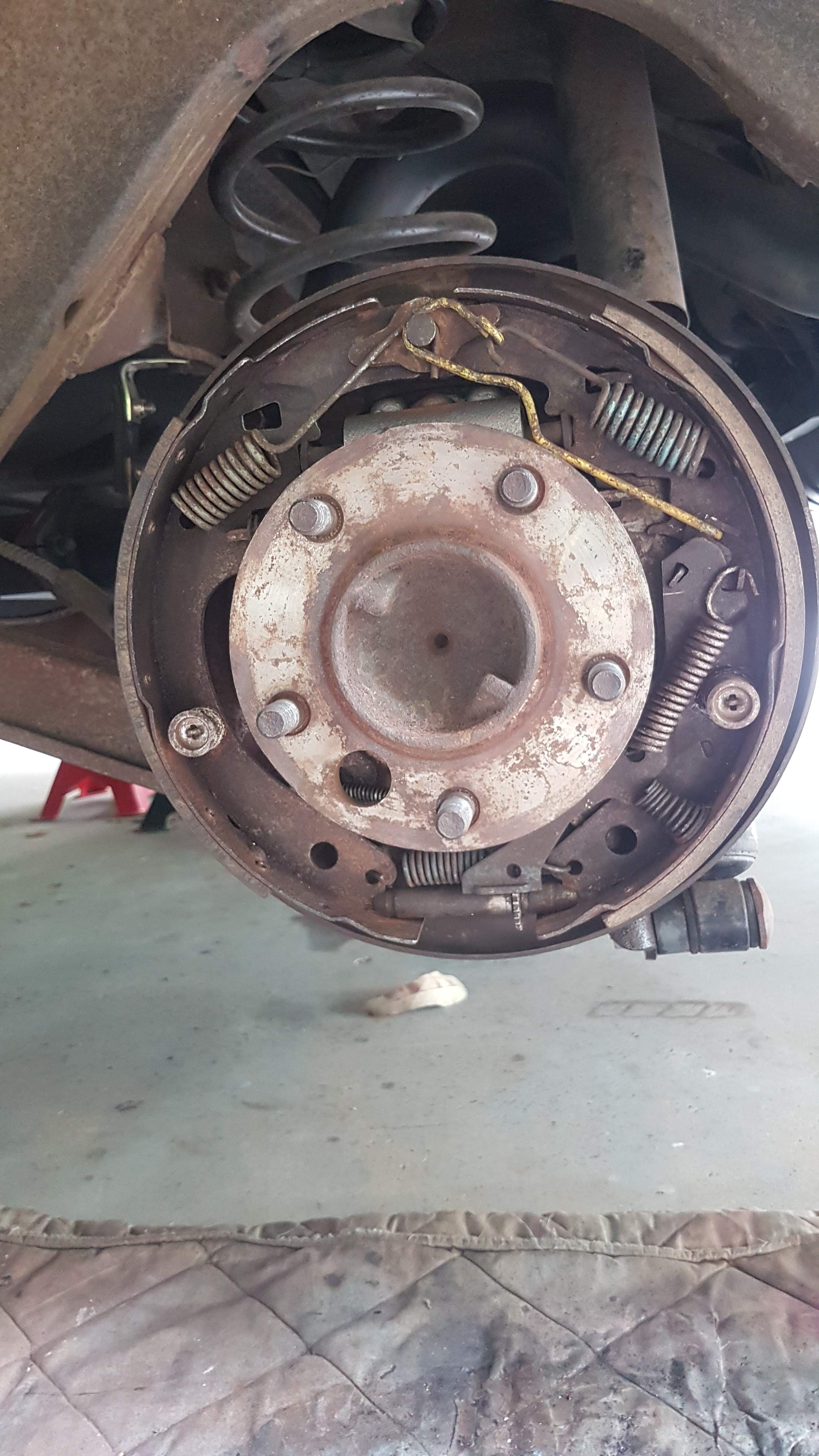

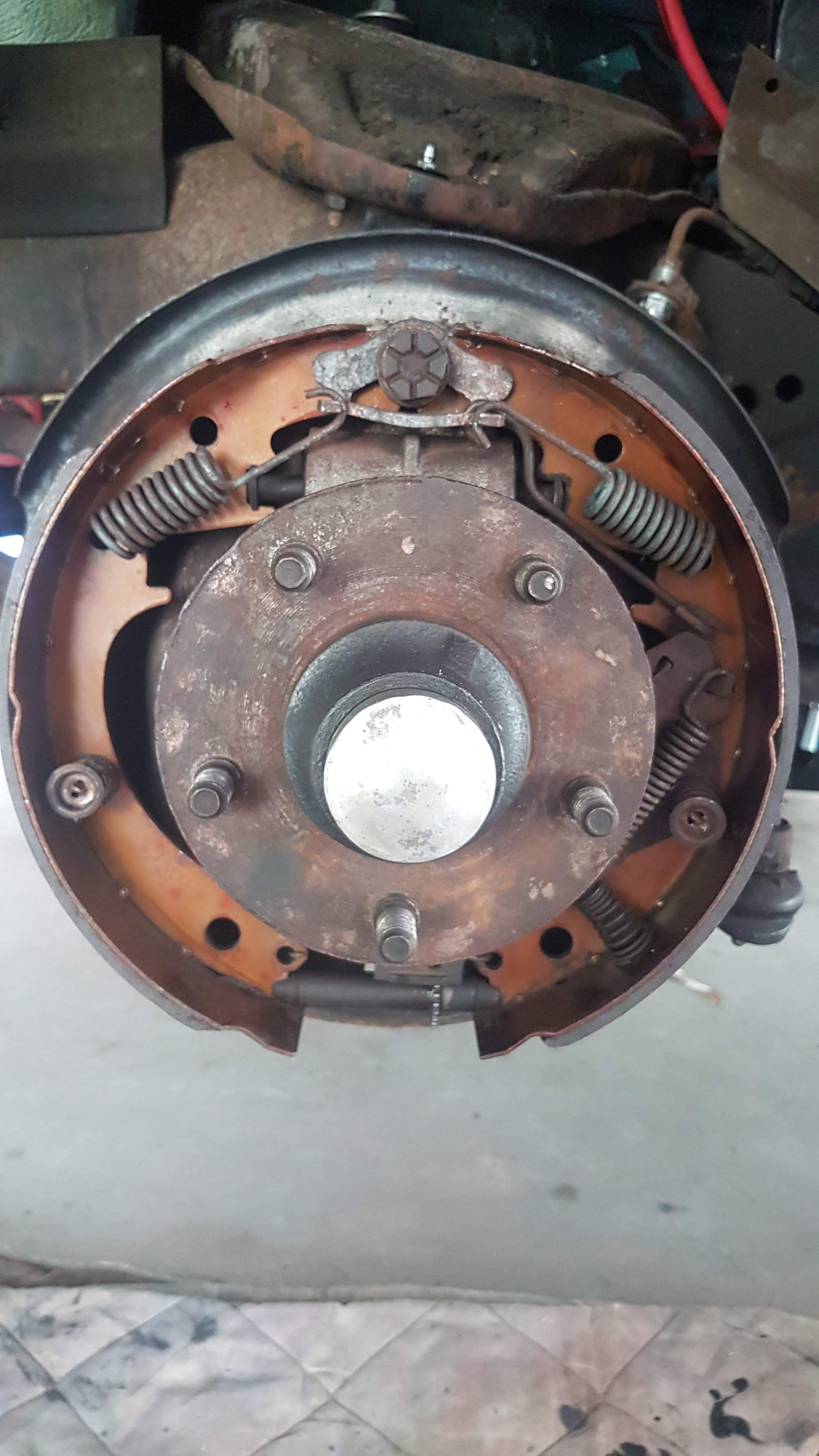

Last pic is nice clean driver's side brake with new cylinder and cleaned & lubed starwheel adjuster.

Another day spent under the car grunting, sweating & swearing. I used to do this sort of work outside parked on the grass when I was a young man but thankfully now I have the luxury of a workshop complete with smooth concrete floor. This luxury became apparent as various bursts of rain occurred throughout the day. I still swore and threw things around and threatened to set fire to 'this piece of shit' but here we are, I've showered and am now reposing with a beer.

Completed RHS brake & bearings and also rear LHS. It just needed a clean up, new wheel cylinder and cleaned & lubed the self adjuster. Just gotta do the RHS rear, adjust and bleed everything and fill the diff with oil and see what happens. In case you didn't know, back in the 60s GM's engineers popped some colourful pills and came up with the world's WORST drum brake adjustment method. You are supposed to insert a screwdriver through a tiny access slot and hold the self adjuster away from the starwheel whilst you pry the starwheel up or down. It might work on the fronts but the rear trailing arms are DIRECTLY in the way of the adjustment area. The RHS drum was dragging a bit so for an hour I attempted to loosen the starwheel. It was never going to work so I patiently tapped and pried around the outer edge of the drum and it eventually popped off. What were they thinking? On my Yaris, there was plenty of room, nothing to foul any tools and was a simple matter of turning the VISIBLE starwheel with a small screwdriver. Whatever - it's done now.

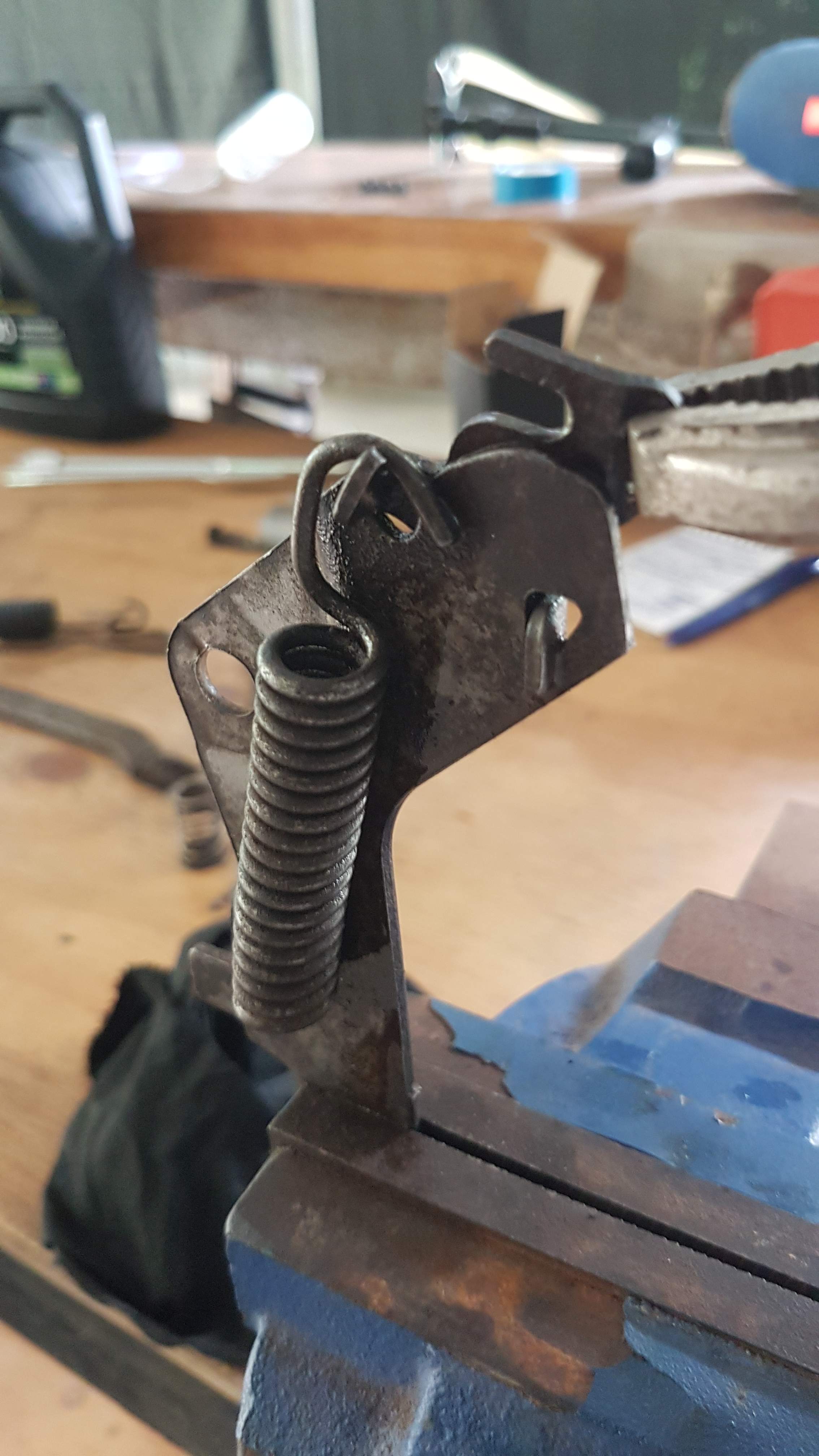

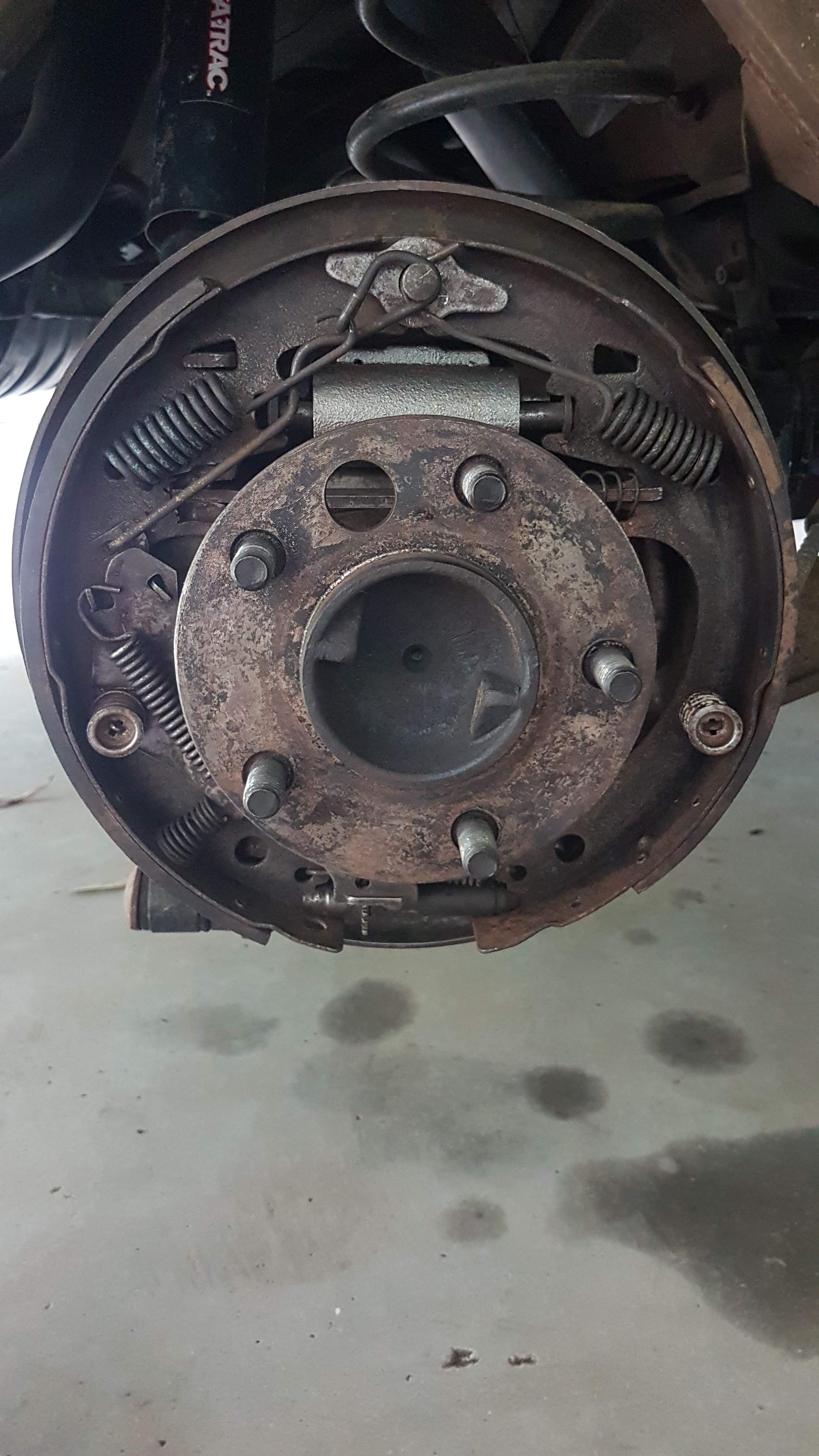

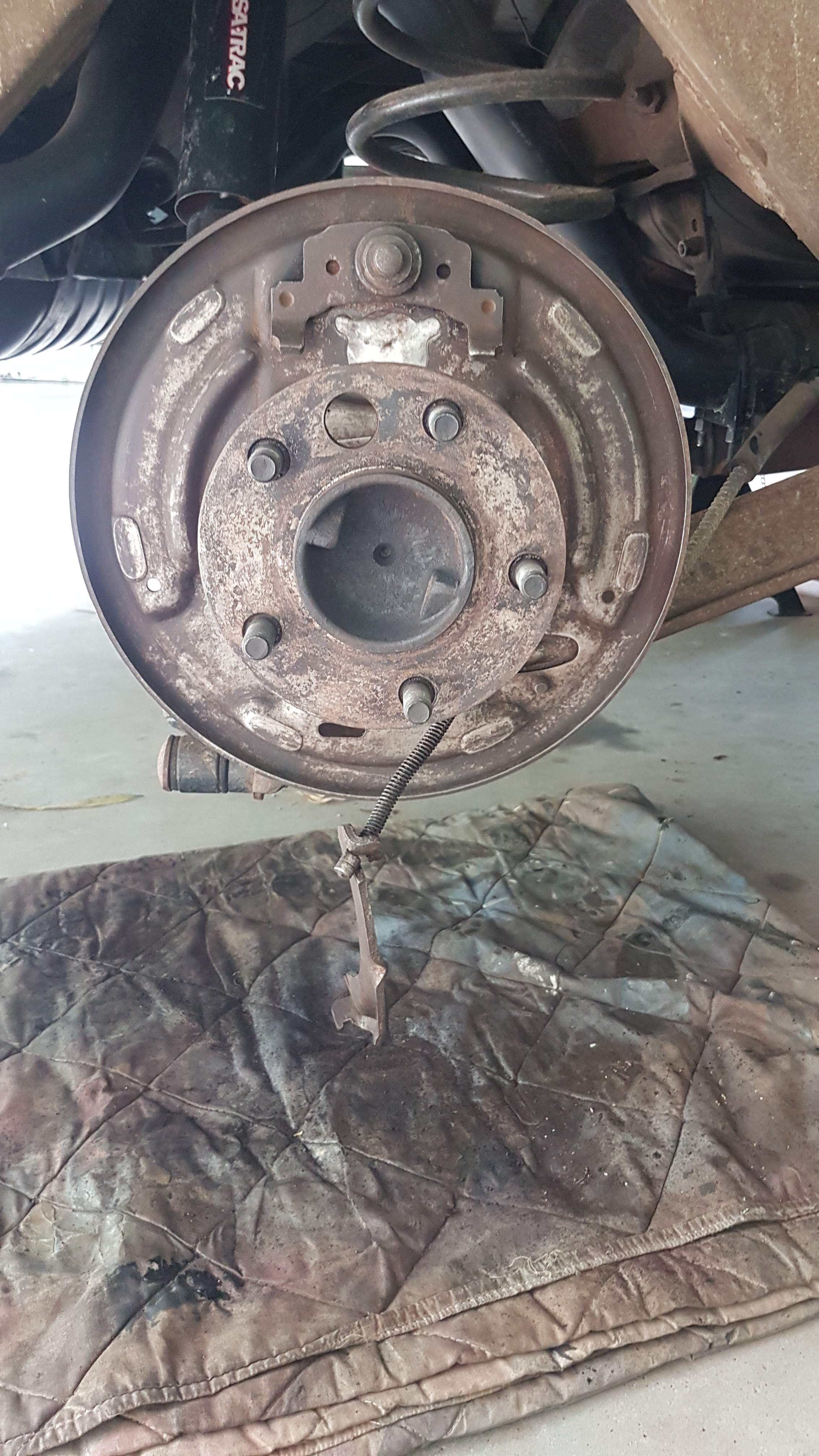

Image is of LHS rear. It was rusty so I cleaned everything up. Yes, I would love everything to be squeaky clean and painted but all I did was run a WD40 wetted rag over the rusty bits. Let's face it, it's always going to be grotty in there.

One more drama. I went to rattle gun the back wheels off and the gun wouldn't work. It's almost new and had full air pressure. After emptying the compressor I inspected the Nitto fitting. Sure enough, the little spring loaded rubber & plastic thingy inside the fitting had decided to step sideways. New fitting coming up.

Nice work mate

nice to know your brakes are at 100% aye !

5 hours ago, Fitzy said:

Completed RHS brake & bearings and also rear LHS. It just needed a clean up, new wheel cylinder and cleaned & lubed the self adjuster. Just gotta do the RHS rear, adjust and bleed everything and fill the diff with oil and see what happens. In case you didn't know, back in the 60s GM's engineers popped some colourful pills and came up with the world's WORST drum brake adjustment method. You are supposed to insert a screwdriver through a tiny access slot and hold the self adjuster away from the starwheel whilst you pry the starwheel up or down. It might work on the fronts but the rear trailing arms are DIRECTLY in the way of the adjustment area. The RHS drum was dragging a bit so for an hour I attempted to loosen the starwheel. It was never going to work so I patiently tapped and pried around the outer edge of the drum and it eventually popped off. What were they thinking? On my Yaris, there was plenty of room, nothing to foul any tools and was a simple matter of turning the VISIBLE starwheel with a small screwdriver. Whatever - it's done now.

Fitzy - have you ever noticed in all the GM shop manuals - that at the end of most chapter sections end with a picture of all the specialty tools they use (like tool J-222) or refer to in that chapter or section? So I imagine there is probably a picture of a screwdriver with a 90 degree bend in it somewhere. That is the screwdriver (excuse me - specialty tool) you are supposed to use to adjust the rear brake star wheel.

None of this makes up for the joy of cussing out a long dead engineer or a old, antiquated automobile. Enjoy the beer mate! You earned it!

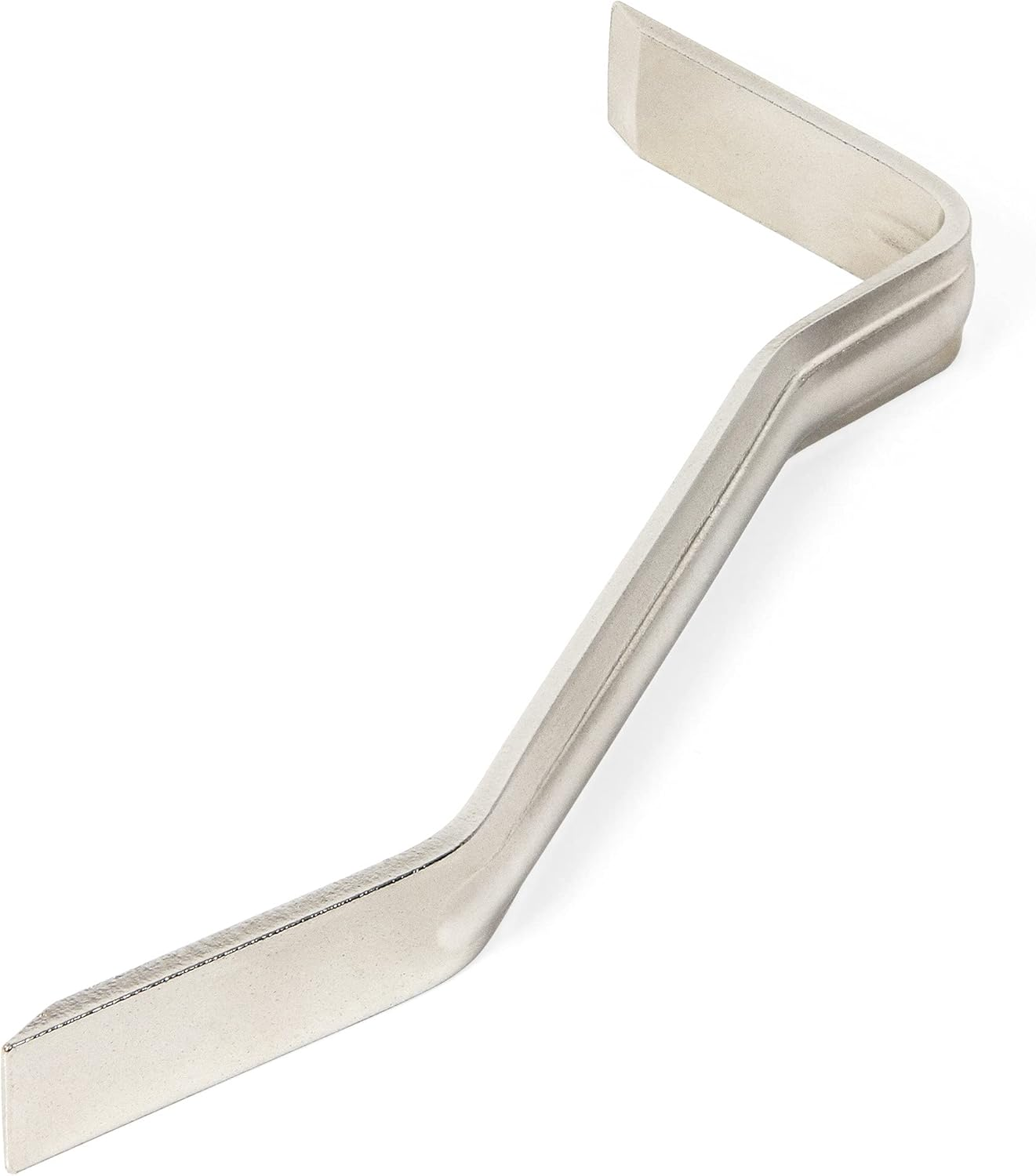

Called a brake spoon, it was a universal tool for brakes.  Wide flat blade screwdriver works JUSTAS good.

5 hours ago, Frosty said:

Fitzy - have you ever noticed in all the GM shop manuals - that at the end of most chapter sections end with a picture of all the specialty tools they use (like tool J-222) or refer to in that chapter or section? So I imagine there is probably a picture of a screwdriver with a 90 degree bend in it somewhere. That is the screwdriver (excuse me - specialty tool) you are supposed to use to adjust the rear brake star wheel.

None of this makes up for the joy of cussing out a long dead engineer or a old, antiquated automobile. Enjoy the beer mate! You earned it!

Yeah fitzy pfffft  ya spoon

Edited December 19, 20241 yr by 64 kiwi boni

I have that EXACT tool - ordered from Ames 3 years ago. I got it after the generic one from a local parts store also didn't work. The tool gets in there but the length of the access slot and proximity of suspension parts preclude the additional room required for another screwdriver. I also only have 2 arms & hands. I'm thinking about growing an additional limb to help out.

I emailed Rockauto re diff pinion seal. They employ a generic question & answer format until the problem is established. They have already shipped a replacement. I can only hope it's correct. I reinstalled the original because it only seemed to be seeping from it's previously unsealed periphery - the lip looked fine.

For Christmas, I want a new Corolla.

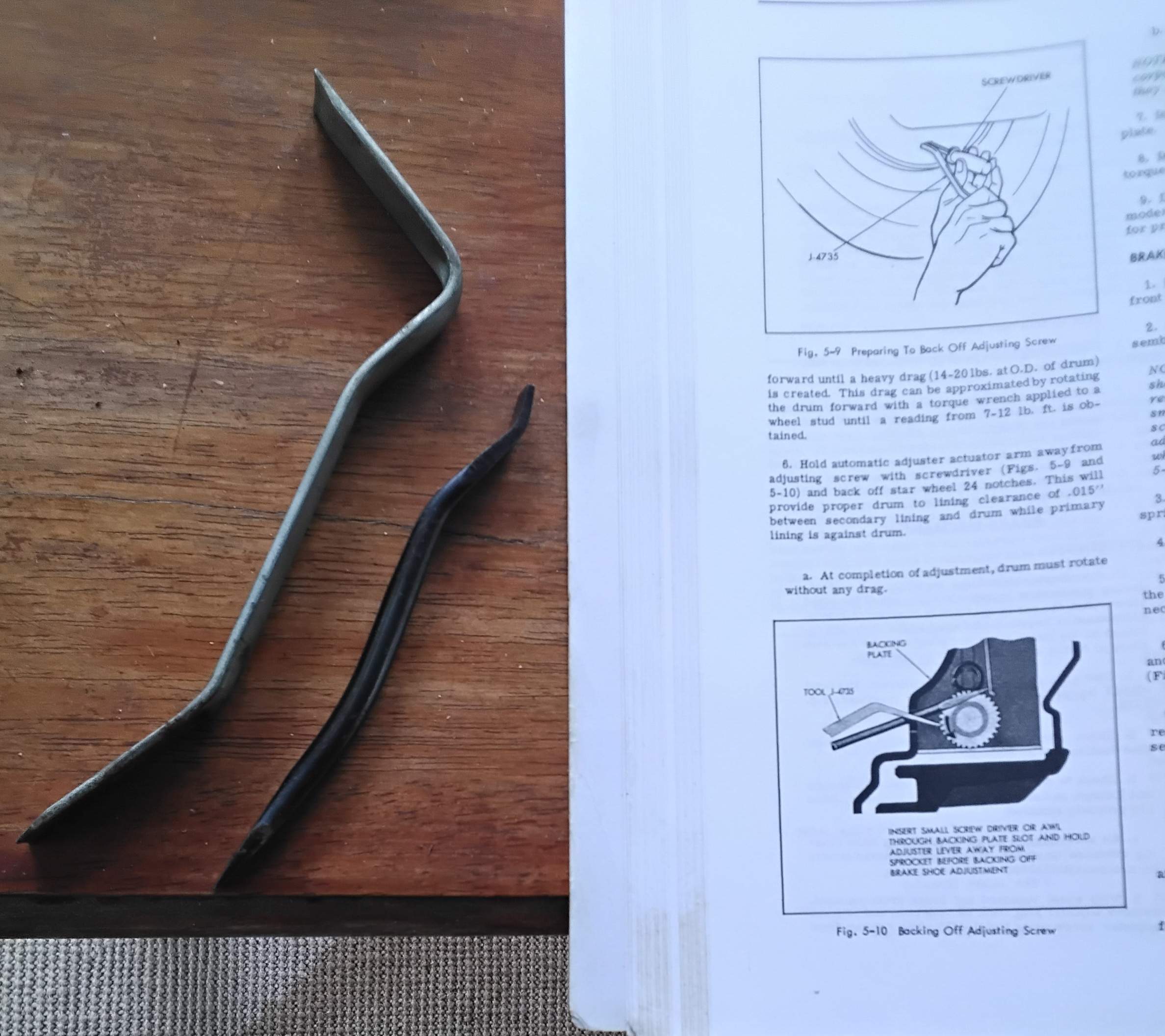

Here is the fanciful vision of what GM's engineers dreamt up re brake adjustment. I love the absence of any suspension or steering components in the pic. Also, see proof of my ownership of both useless tools. And before anybody asks, my screwdriver collection comprises almost every size ever produced.

I'll bet the same engineer who thought of this was the same bloke who suggested (after a 6 pack of Coke and 4 aspirins) that the distributor should be placed at the back of the engine and the fusebox positioned where God Himself couldn't get at it.

Mumble, grumble....

5 hours ago, Fitzy said:

For Christmas, I want a new Corolla.

did you say corona ?

only one ???? pffft

i hear they dont make corona in mexico anymore! its all china made ! wtf ?

2 hours ago, 64 kiwi boni said:

did you say corona ?

only one ???? pffft

i hear they dont make corona in mexico anymore! its all china made ! wtf ?

Noooooooooooooooooo!!!  Someone else told me that and I thought he must be joking. I love an occasional Corona but Made In China? Colona? After 12 it's colonic irrigation time?

Completed the final brake today - an unpleasant but satisfying job. I now know that all wheel cylinders are new, all linings have been inspected & cleaned and all self adjusting mechs have been brought back to life.

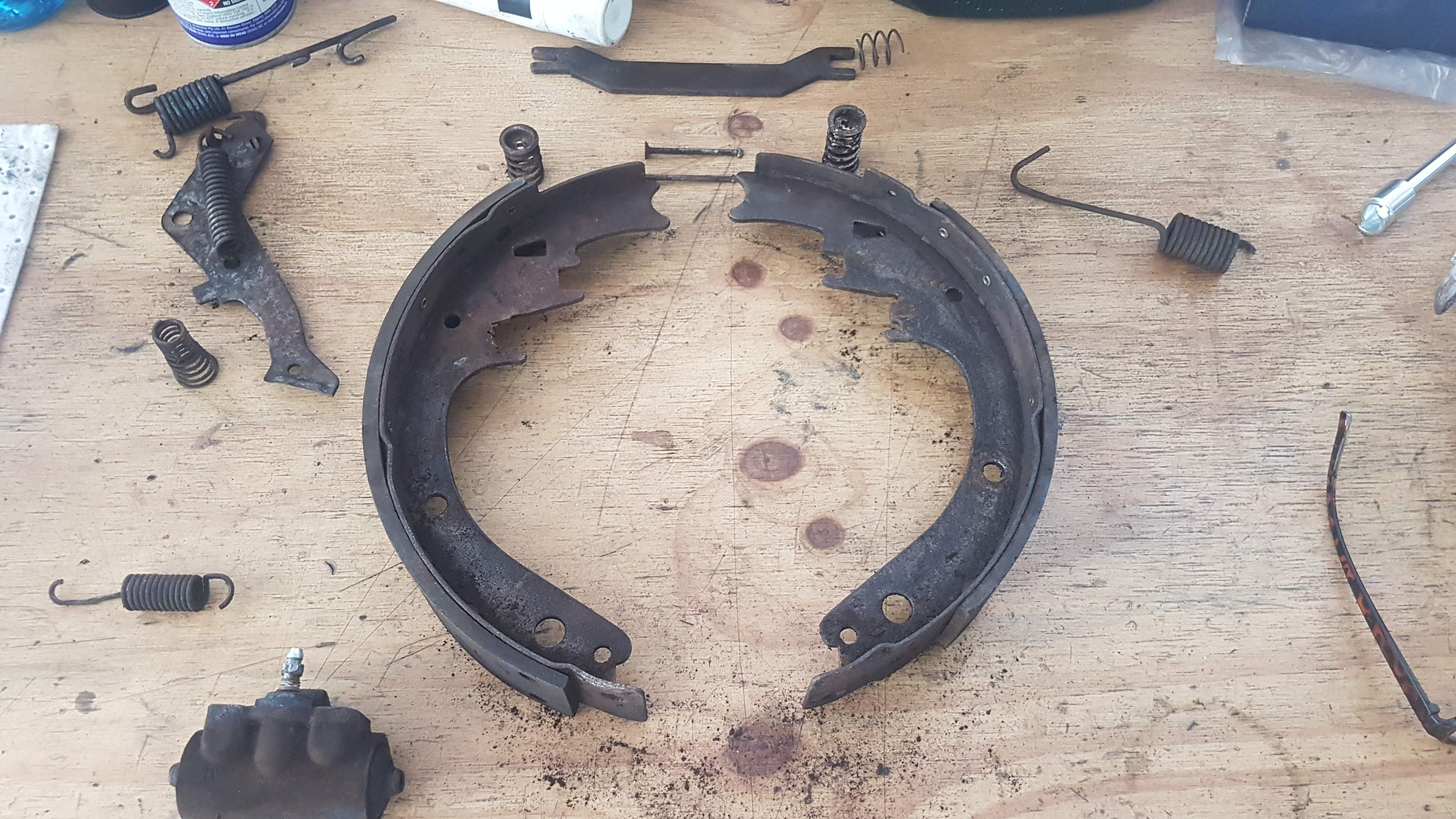

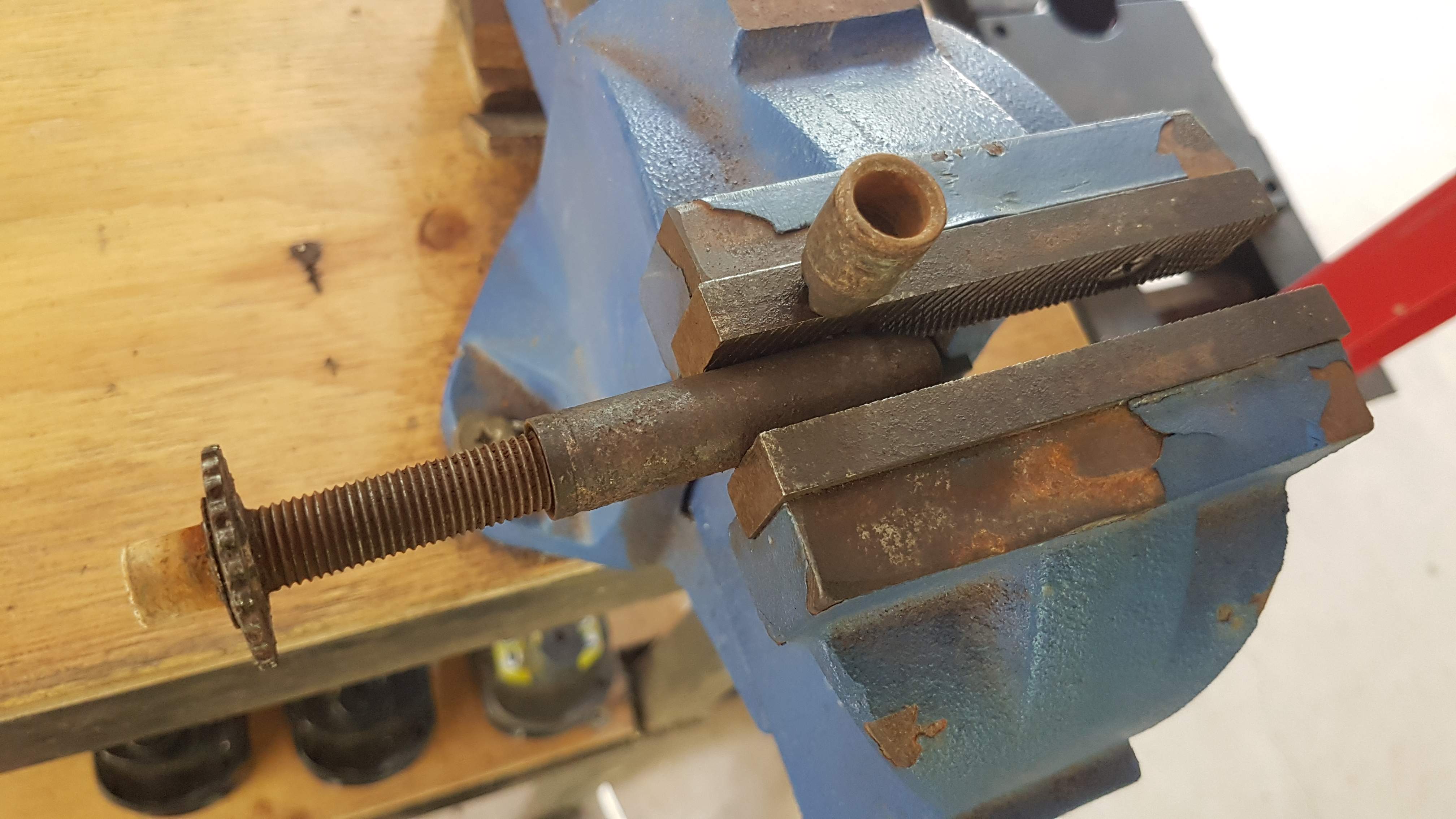

The self adjuster on this brake was rusted solid. Now spins like a top. Note the little hinged thingy at the top of adjuster arm - that needs to work too. All 4 wheels were rusted solid. Whilst there, I lubed handbrake cable and moved it in & out and both work nicely - nice to know when you apply the e brake as you're careening down a mountain road with brake failure.

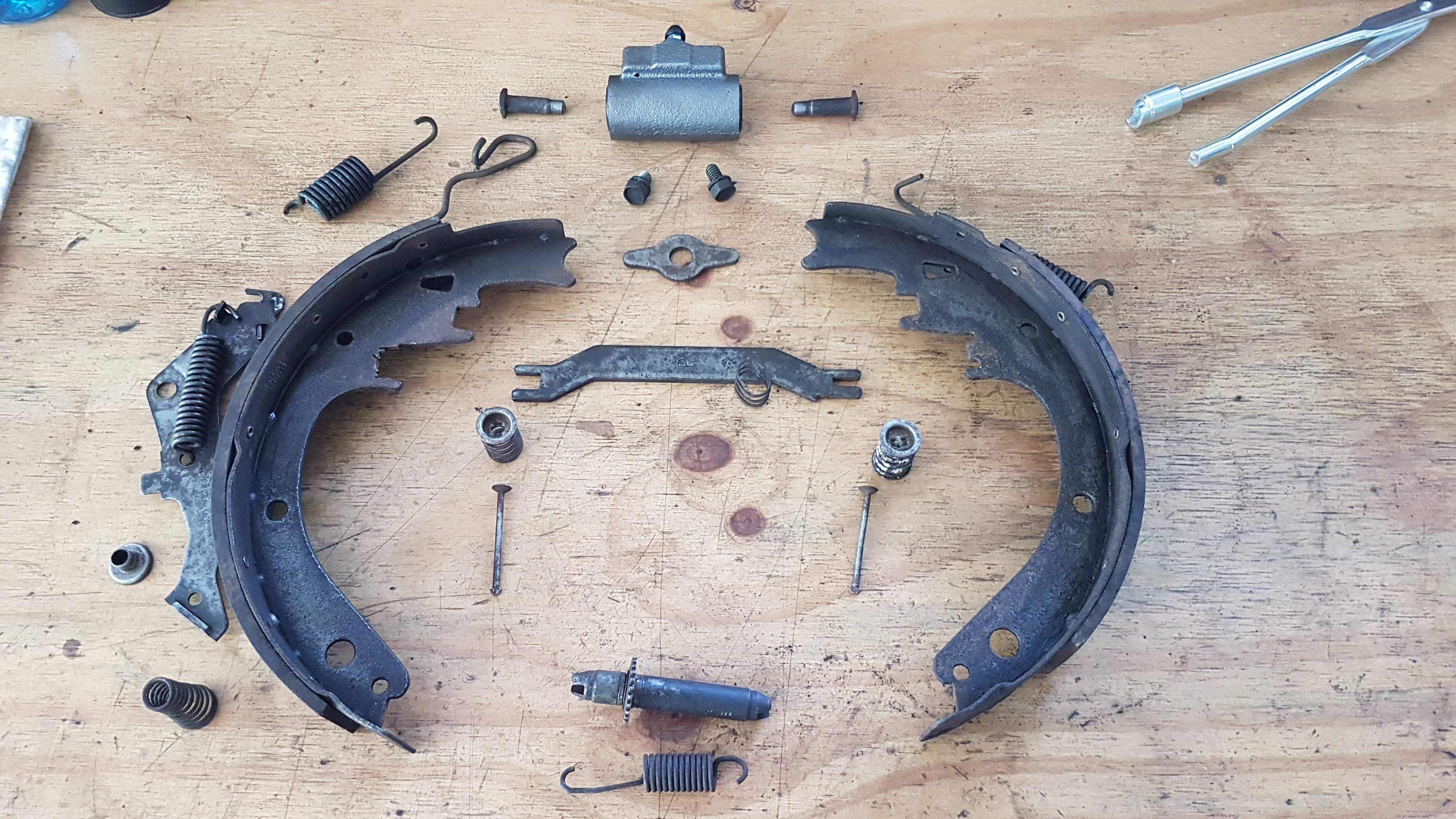

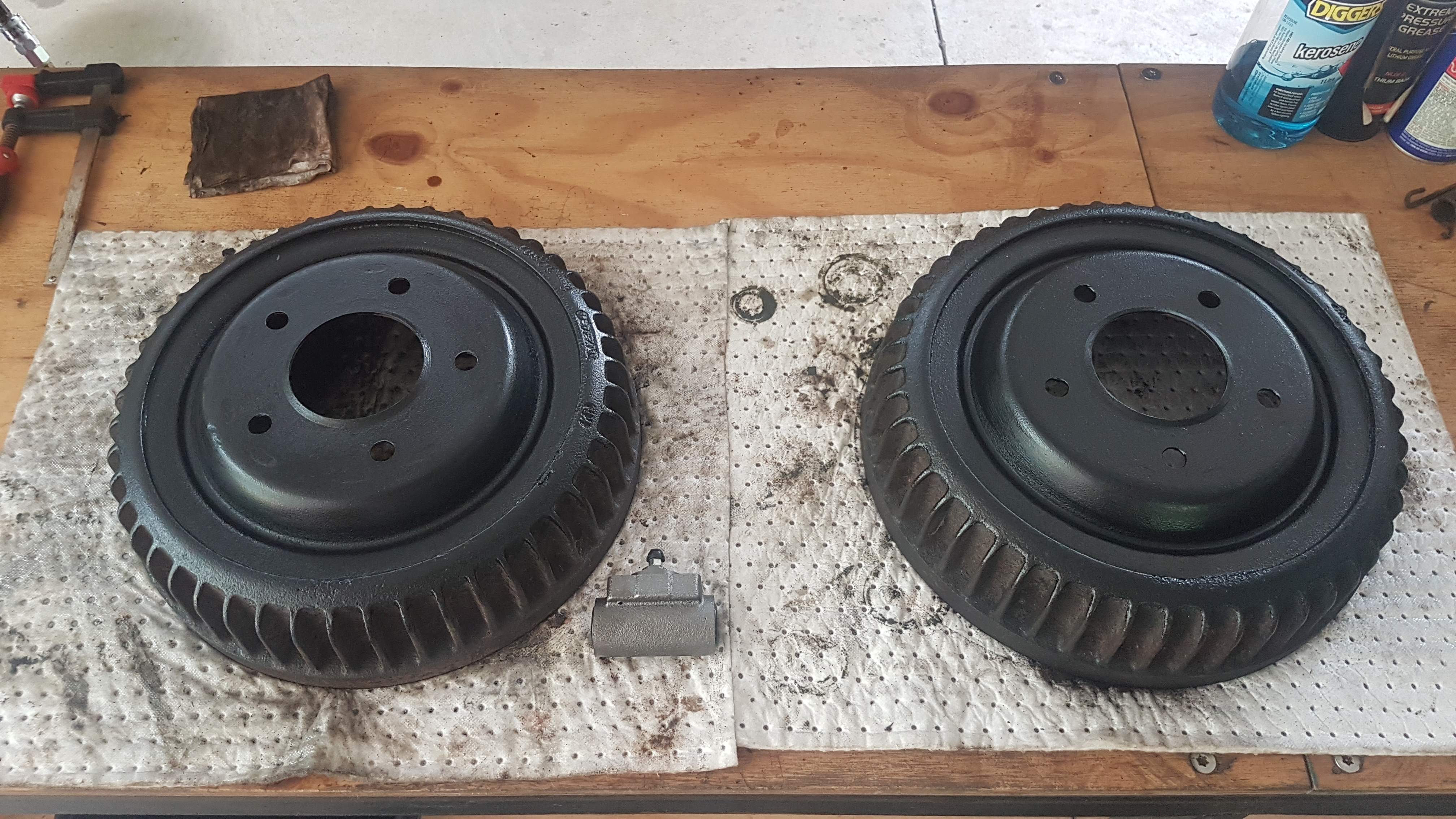

Spruced everything up, new wheel cylinder is in, linings wiped clean and freshly painted drum is back on.
