I have a wiring diagram for the 55 Pontiac that I'm redoing.  It shows the following wires connecting to the starter but does not show which terminals to connect them to.  Help please.

1.  Neutral safety switch to starter.

2.  amp gauge, fuse and B terminal of horn relay to starter.

3.  coil to starter.

4.  battery.  At least I know which one it goes to.

Link to post
Share on other sites

Tired of these Ads? Register Today!

Refresh my memory. Is this a dash or floor mounted switch?

Edited by Frosty
Link to post
Share on other sites

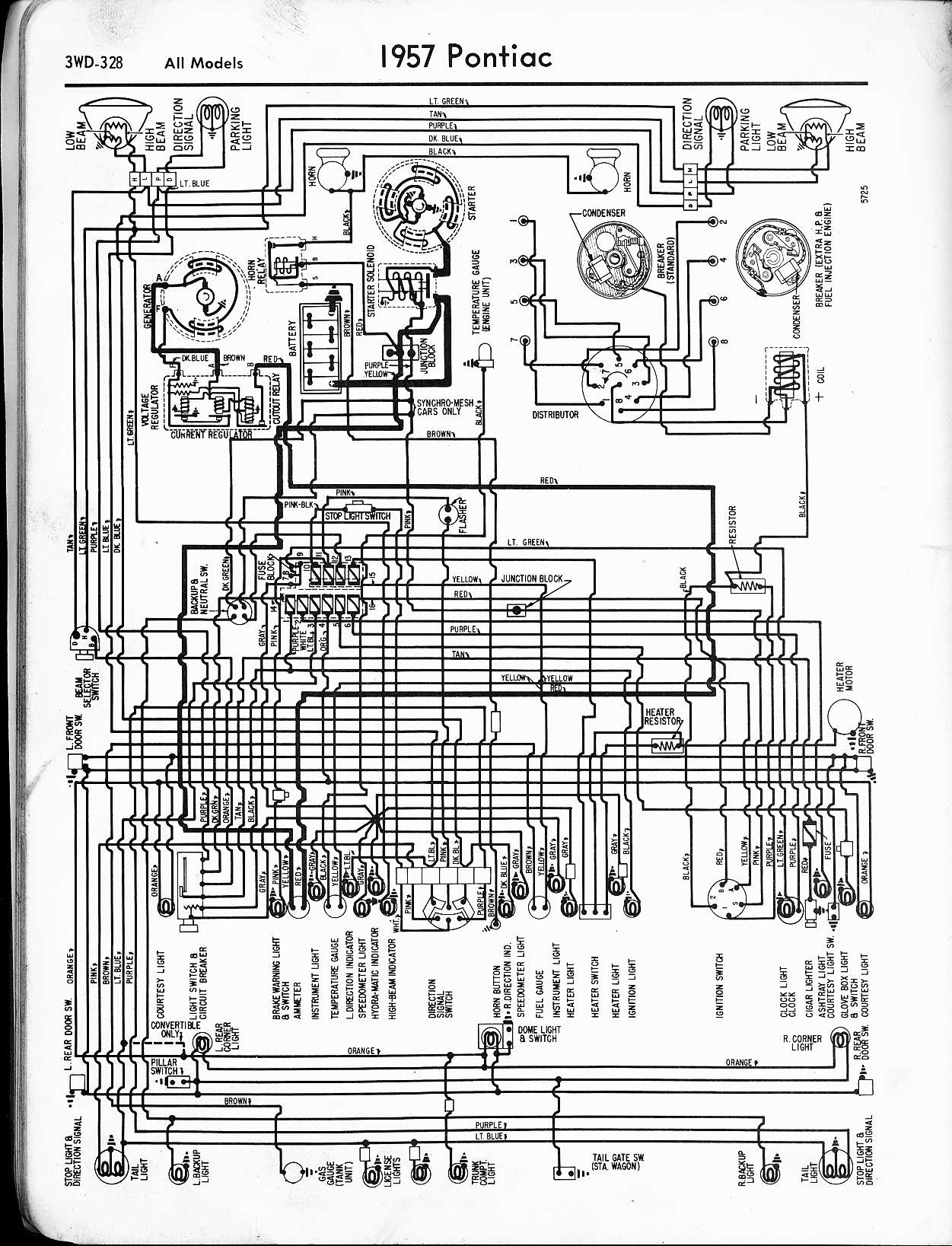

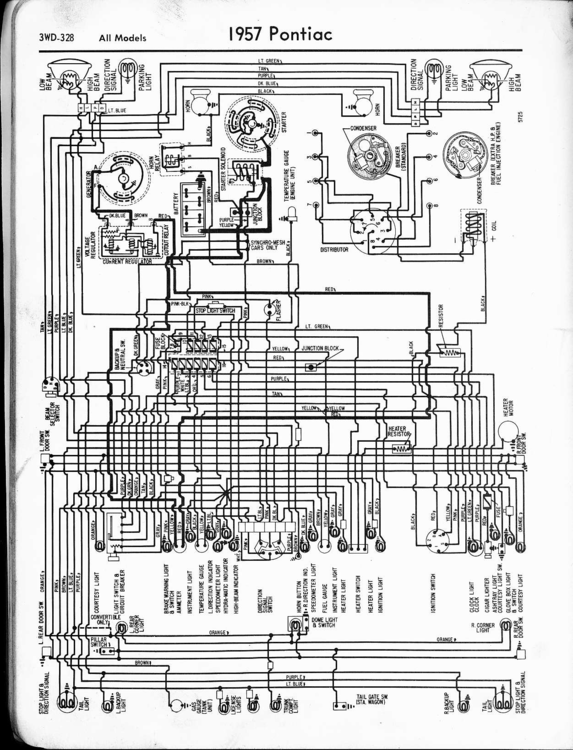

I found the '57 wiring diagram. I am hoping that it's close to your '55 wiring. Ignition switch is towards the lower right.


Link to post
Share on other sites

Dash switch but the 57 at least shows the terminals.  My diagram has the junction box next to the starter as well.  My 55 had no junction box that I know of.

Link to post
Share on other sites

Dash switch - makes sense. I figured that was what you were looking for. I was not able to find a 55 or 54 diagram online. The 57 Pontiac was the closest thing I could find.

Now if someone has the 55 manual, well that would be even better.

Link to post
Share on other sites

Don't know if this will help or not...Don't have a manual for a Pontiac..But I do for a 1955 Buick...Alot of GM cars share the same electrical parts and the circuits are laid out very similar or in alot cases they are the same amongst the different brands.. Anyway maybe this will help..



Link to post
Share on other sites

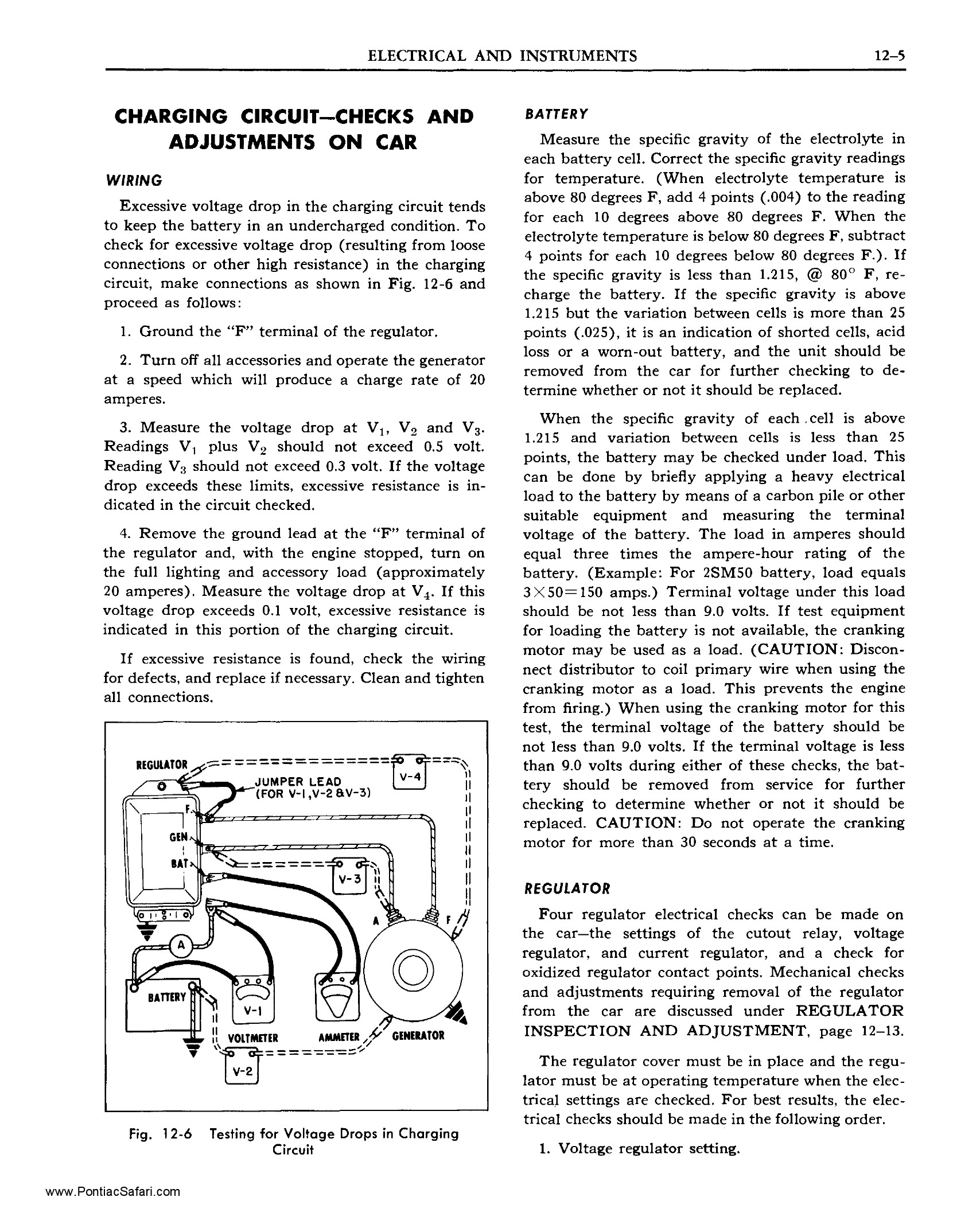

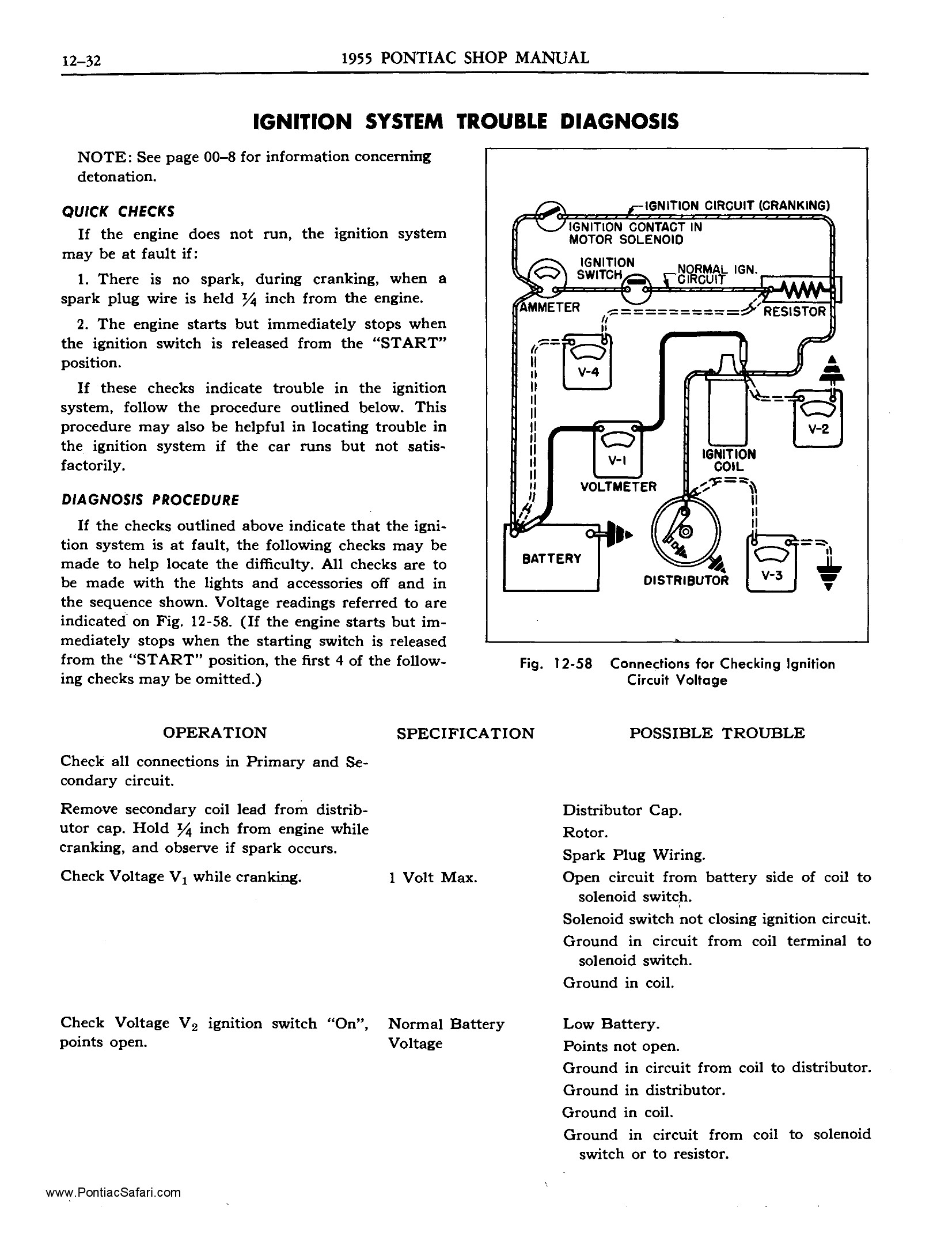

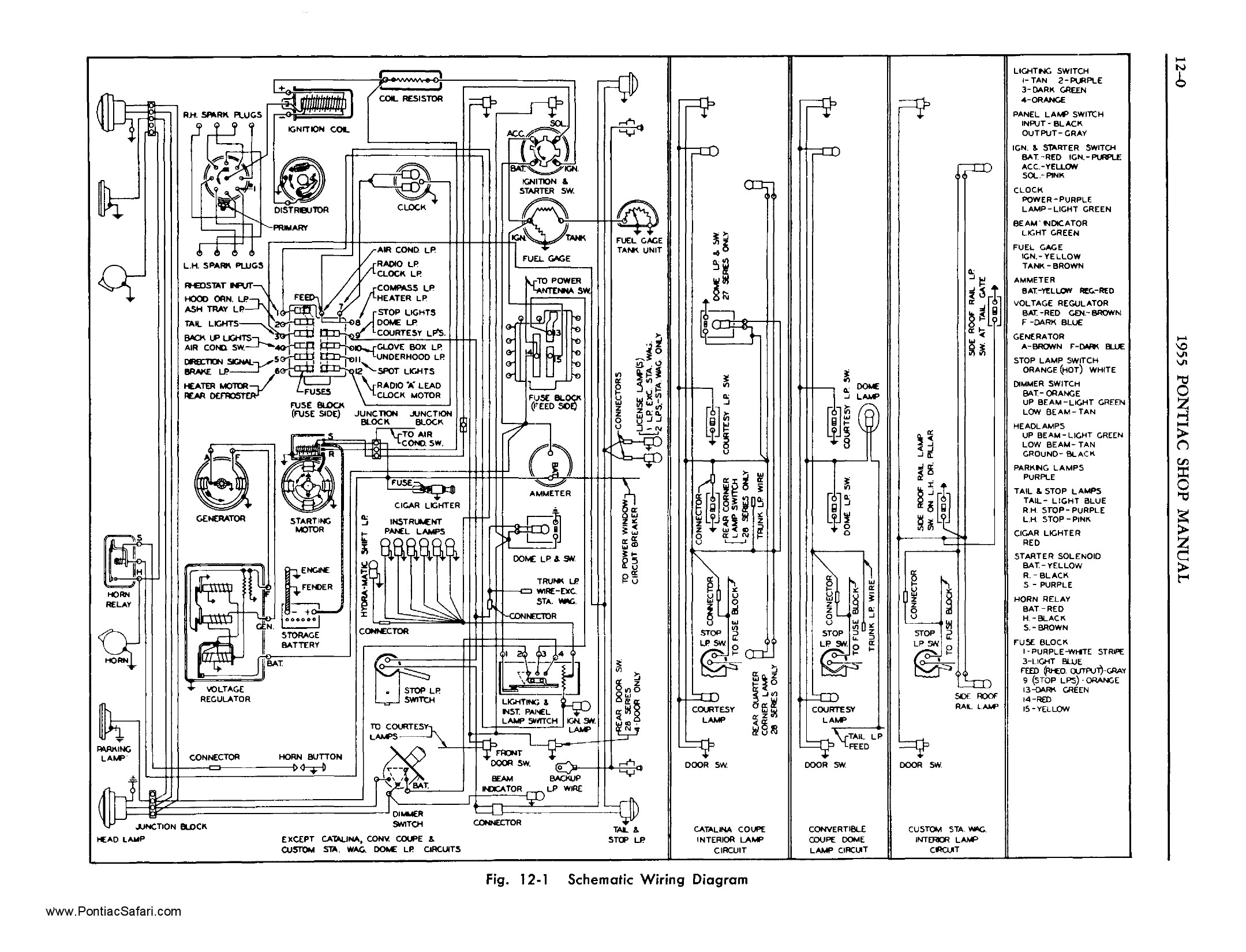

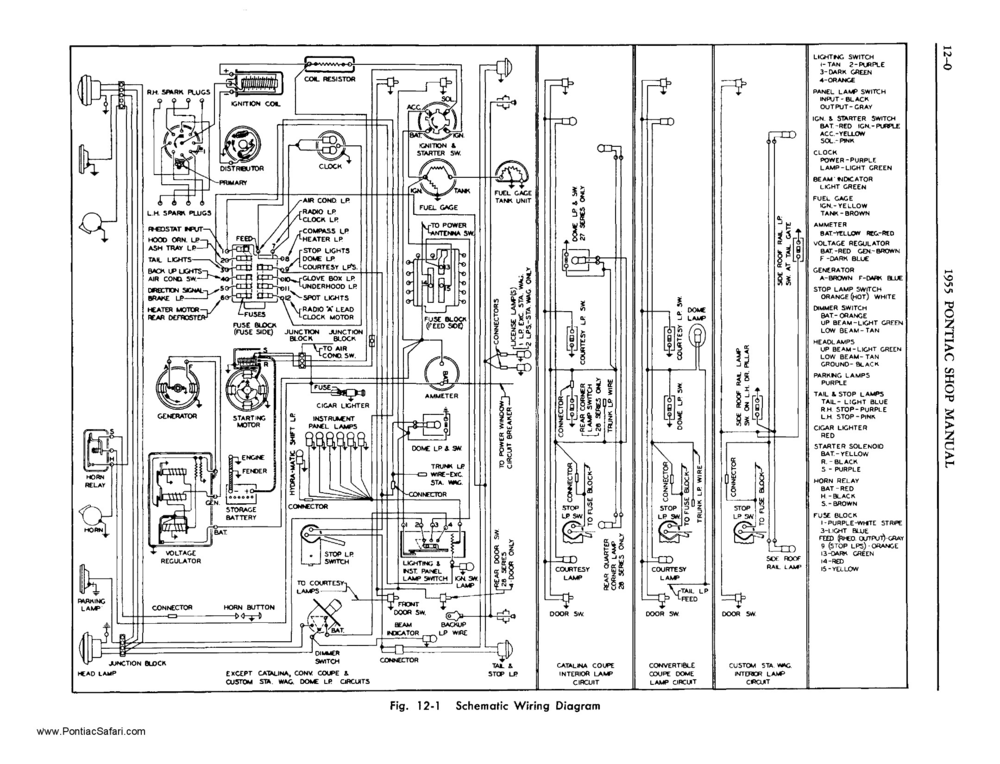

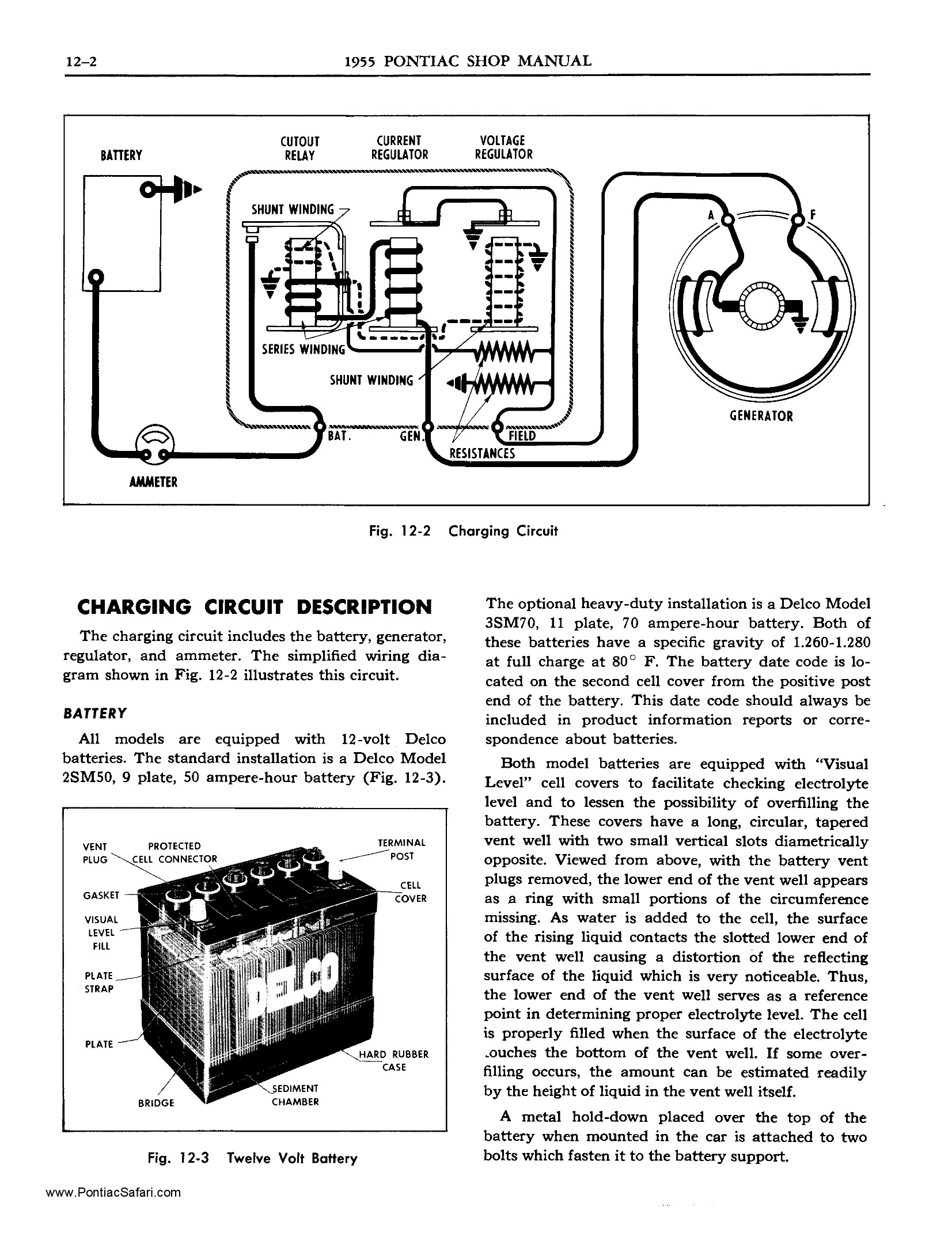

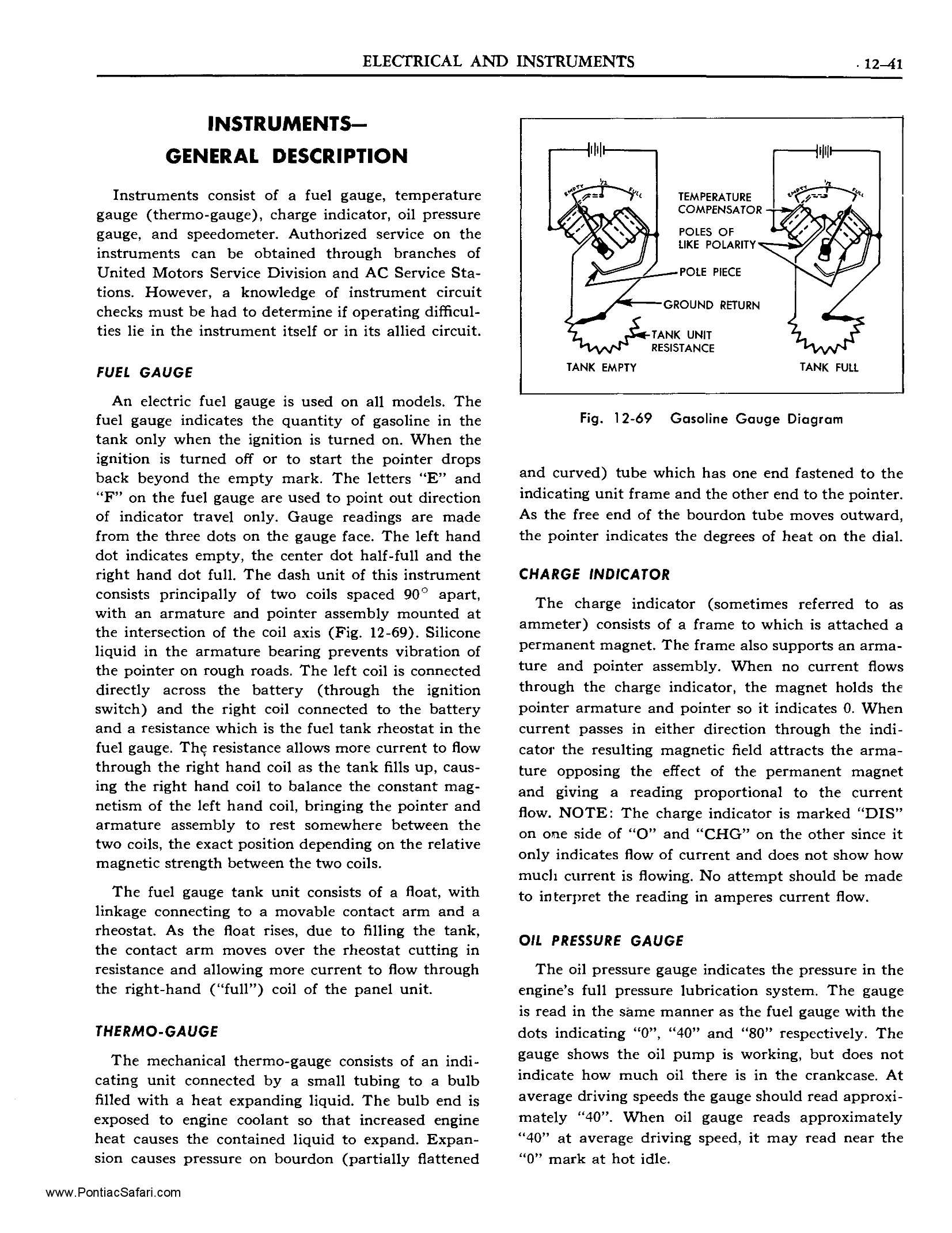

Might help, some?







Link to post
Share on other sites
