Power Window Wiring Diagram 54 Pontiac Star Chief

Mikei16
in Pontiac General Discussion/Questions

Featured Replies

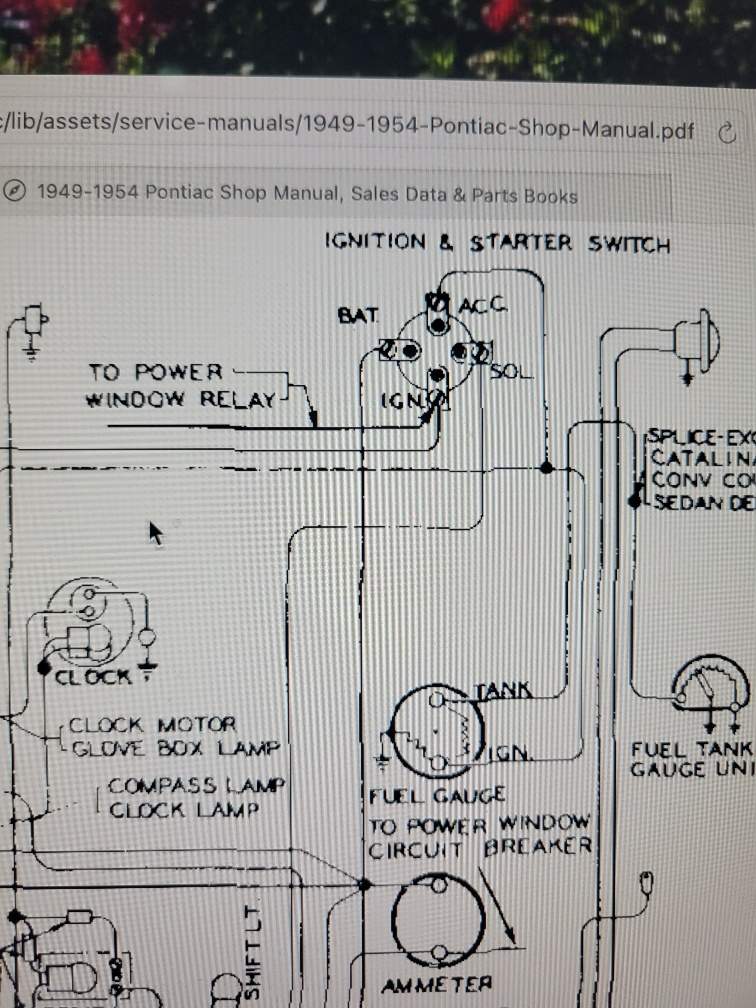

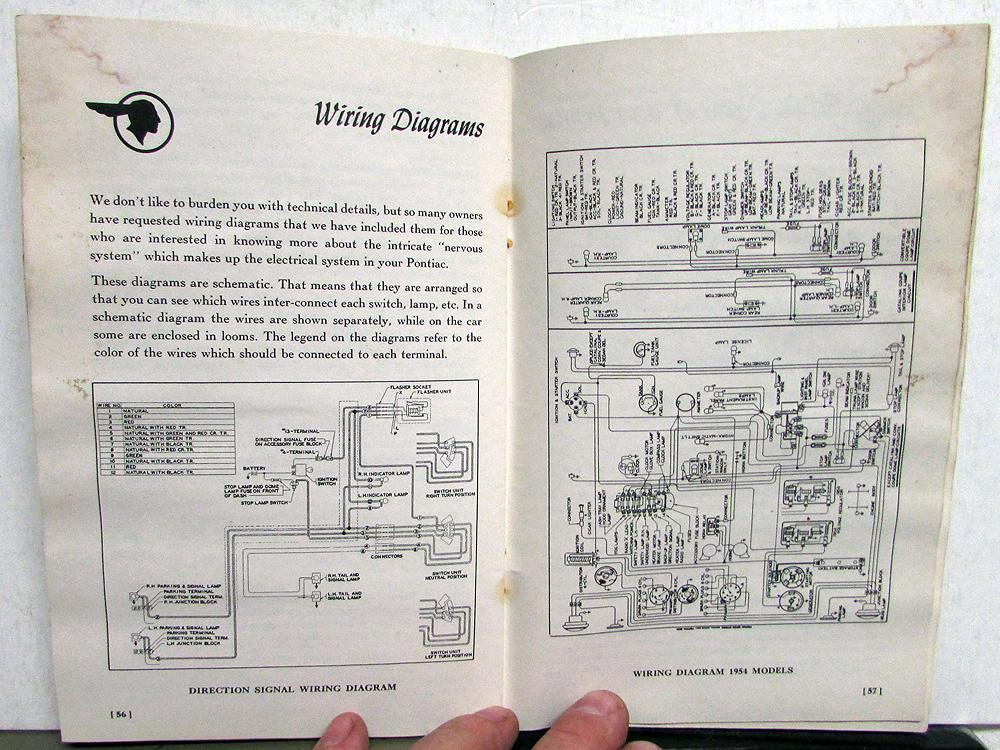

While I was replacing my gas gauge I notice a brown wire that was disconnected  when I removed the dash cluster, now my power windows don't work and when I checked the wiring diagram, this is all they show. Does anyone have a wiring diagram of the power window circuit?  Thanks fior any help



Mike


Tired of these Ads? Register Today!

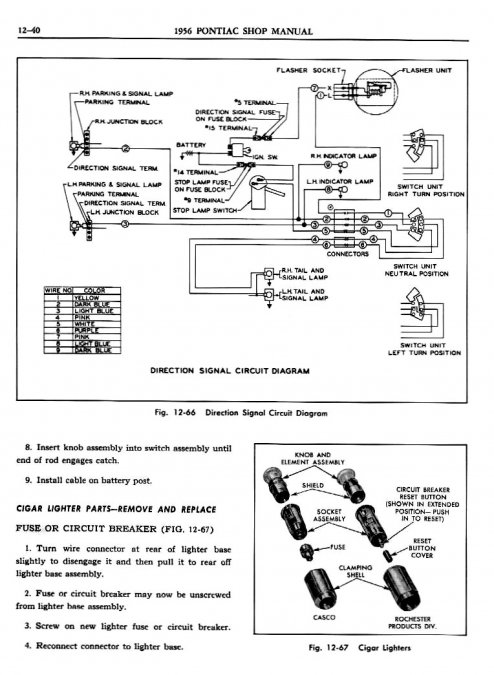

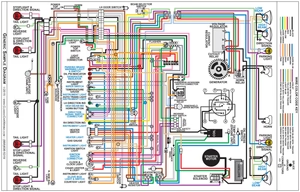

1955-56 Wiring Diagram

image.png.e25e943481d2efaed49ca2a7cb791c35.pngimage.png.7d1dfa7b45b4323c08044280ab511626.png

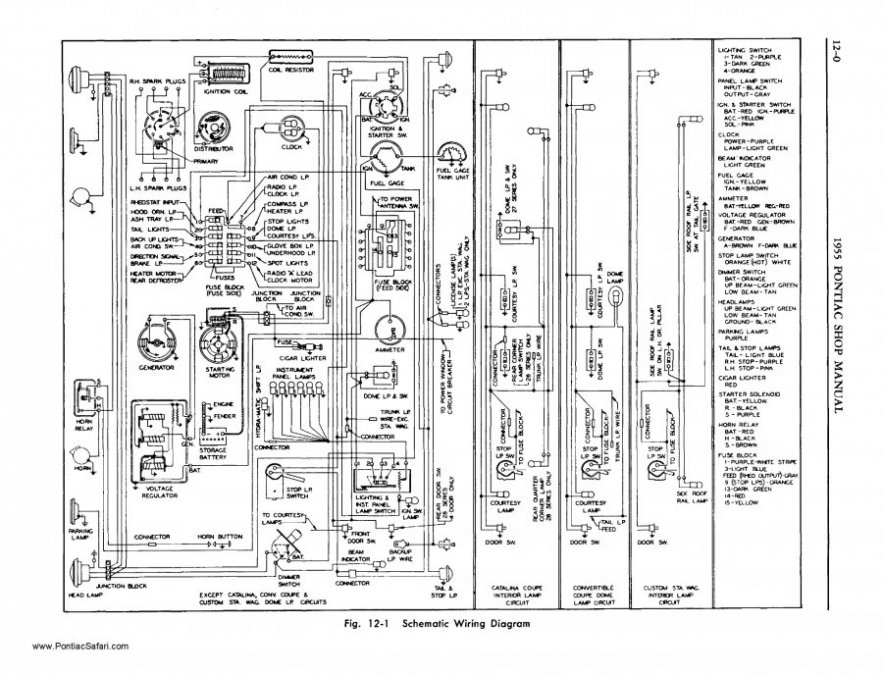

1955 Wiring diagram

Mikei16 - do you have a 1954 Pontiac shop manual? It would come in handy for stuff like this. You can buy them online at Detroit Iron - either in electronic form or paper. For me, it's a cheap investment.

Paper

https://www.detroitironis.com/1950-1959-pontiac-shop-manuals-print.html



Electronic

https://www.detroitironis.com/1940-1959-pontiac-shop-manuals-usb.html

    • Like 1
    • Author

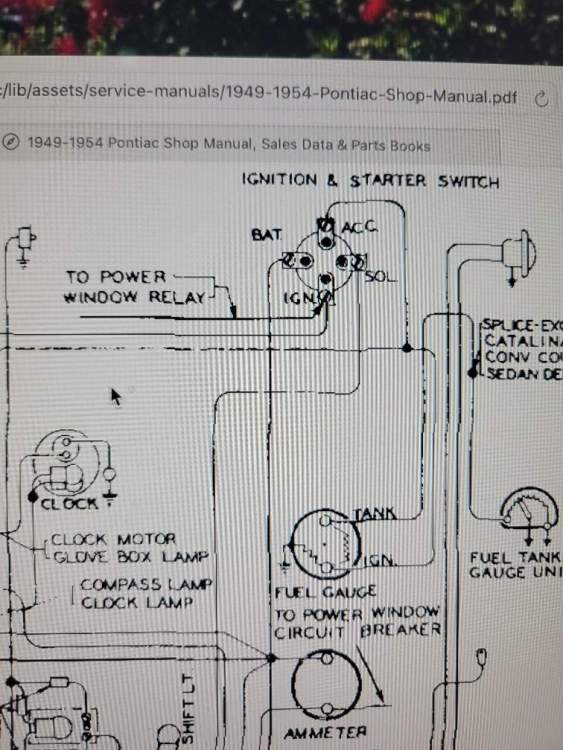

    Hi Frosty, yes I have a OEM repair manual and it shows what I posted.  Wire coming off of the key switch going to the power window relay. all it shows is that wire, but it dont show you where the relay is or any other info?



    Mike

    • Like 1
    • 2 weeks later...
    • Author

    The brown wire that powers the window connects to the amp gauge.  All is good Thanks

    • Like 1
